The route Command

  • A router (gateway) connects different networks and directs network traffic.
  • The route command displays the kernel IP routing table, showing where packets are sent.

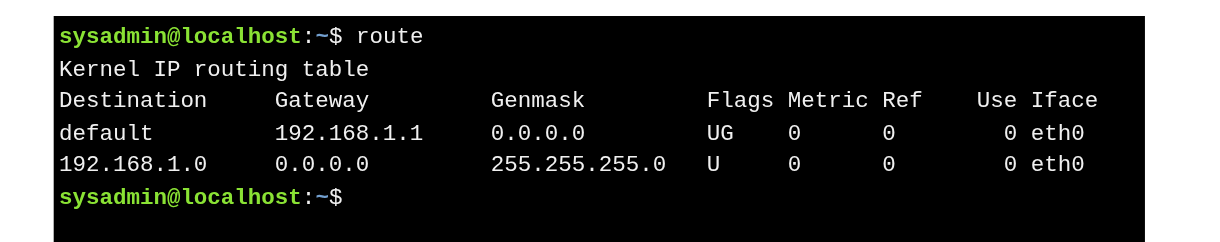

Example : alt text

  • 192.168.1.0 → Local network; packets sent directly (* no gateway).
  • default / 0.0.0.0 → All other destinations; packets sent to router at 192.168.1.1.

Numeric View

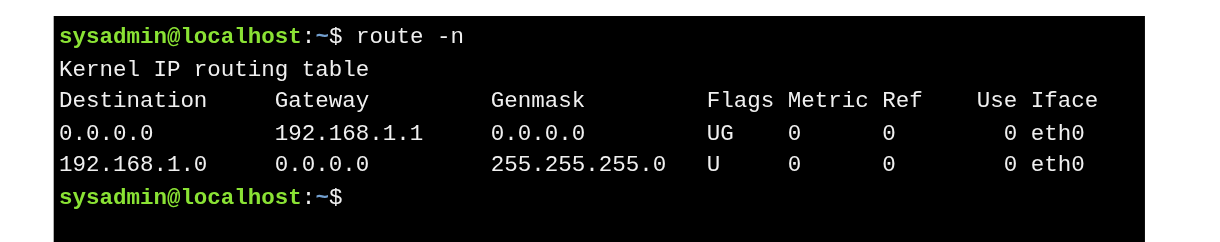

  • Use -n to show IP addresses only:

alt text

  • 0.0.0.0 = default route (all other machines).

Modern Replacement

  • route is deprecated in many Linux distributions.
  • Use ip route show instead:

alt text

  • default via 192.168.1.254 → router for all external traffic.
  • 192.168.1.0/24 → local network, directly reachable.
