MVC Architecture

• The Model-View-Controller (MVC) framework is a design pattern that separates an application into three components: Model,View ,Controller.
• Each part has a clear responsibility, making applications easier to develop, maintain, and scale.

MVC Three Components

• View
  • Represents the UI (User Interface).
  • Should not contain business logic.

• Controller

  • Acts as a bridge between Model and View.
  • A java class which can handle a HTTP request coming from view layer.
  • Handles user requests, processes them, calls the Model for data, and returns output to the View.

• Model

  • write logic which is responsible for Database communication.
  • Manages database, state, rules, and validations.
  • Represents the data and business logic.
  • Model layer divided into two part :
    • Service
      • Contains business logic.
      • Coordinates between Controller and Repository.
    • Repository
      • Handles database operations.
      • Uses Spring Data JPA / Hibernate for CRUD.

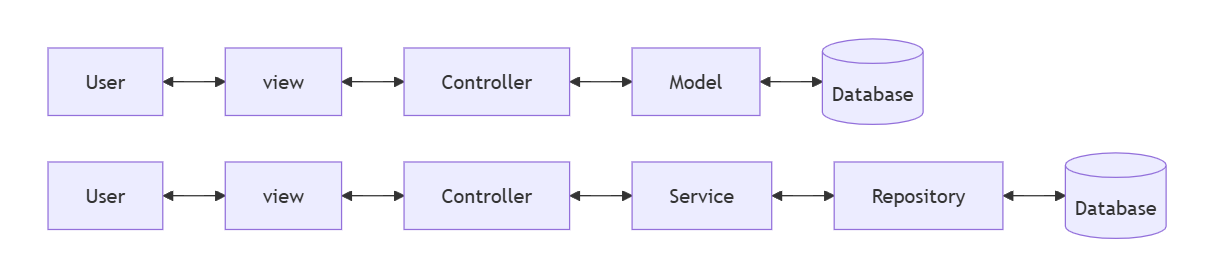

Flow of MVC

• User sends a request.
• Controller receives the request and calls the Model.
• Model interacts with the database / business logic and returns data.
• Controller passes the data to the View.
• View renders the response back to the user.

Disadvantages

• Can be complex for small applications.
• Requires understanding of layer interactions.
• Sometimes causes extra layers of code.
